Portable Water-Cooled Chillers

CW Series (Portable) – NW Series (Stationary)

Untitled-1 copy

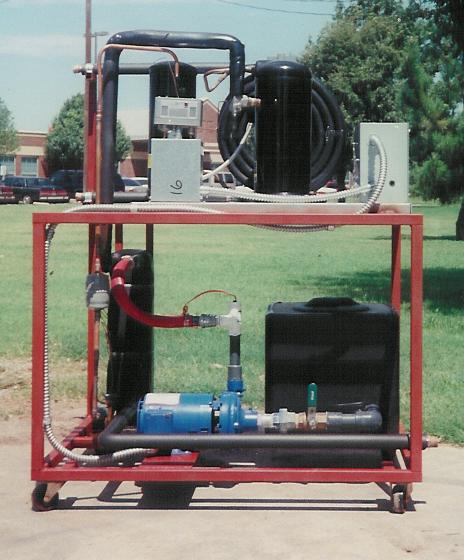

COMPA-CHILL “CW SERIES” PORTABLE WATER-COOLED CHILLERS
(1.5 -10 TON CAPACITY) INDOOR/OUTDOOR INSTALLATION

WPI Compa-Chill “CW Series” portable water-cooled chillers are highly efficient because they use Scroll compressors and high heat transfer stainless steel plate evaporators. Standard temperature controllers are used and are +/-1 degree accurate. The “CW Series” portable chillers are available with optional make-up water, headers, and several other options to fit your requirements. The chiller is easily field converted to chill a remote reservoir.

watercooledcwnw9

Features:
~ Rotary Scroll Compressors
~ Insulated non-ferrous reservoir
~ H2O level sight glass
~ Bronze fitted pumps
~ Steel tube frame with casters
~ Galvanized dust covers
~ Stainless steel plate evaporator
~ Stainless steel plate condensers
~ Refrigeration TEV
~ Phase/Voltage protection
~ Refrigeration sight glass and dryer
~ Pump/compressor manual switches
~ Digital read-out temperature controller
~ Fused 24 volt control
~ Charged and tested
~ Wiring diagrams and manuals
~ Warranty 1year on parts 5 years on compressors

Applications:
~ Bakeries
~ Blow molding
~ Compounding
~ Compression molding
~ Heat treating
~ Extrusion
~ HVAC
~ Injection molding
~ Laser cooling
~ Pharmaceutical
~ Thermoforming

Simplistic Design
Exemplar Quality

watercooledcwnw92small

watercooledcwnw2small

watercooledcwnw8small

Options:
~ Remote panel
~ High temperature alarm
~ Hot gas bypass with PID control (1.5 to 5 ton)
~ High head pump systems
~ Dual pump systems
~ Isolation heat exchangers to chill H2O near freezing
~Pressure activated freeze-stat

Safeties:
~ Low water flow
~ High-low refrigeration pressure
~ High and low temperature limits
